iPhone 13 Restarts Every 3 Minutes?Confirmed Cause: Proximity Sensor Flex Failure
If your iPhone 13 keeps restarting on a loop (approx. every 180 seconds), it is likely NOT a motherboard or battery issue. This guide explains the 'Panic Full' diagnosis and the specific sensor repair required.
QUICK ANSWER
System Watchdog Timeout (Checkins Failed)
Replace Earpiece Speaker & Sensor Flex
Hardware FixIntermediate DIYFixes Boot Loop
Confidence: 95% (High). Use our diagnosis tool
Why This Diagnosis?
MATCHED EVIDENCE FROM SYMPTOM CHECK
Phone restarts automatically every 3 minutes (180 seconds)Panic log contains 'missing sensor(s): mic2' or 'prs0'Face ID may have stopped working recently (or works intermittently)Battery health is normal (>80%)

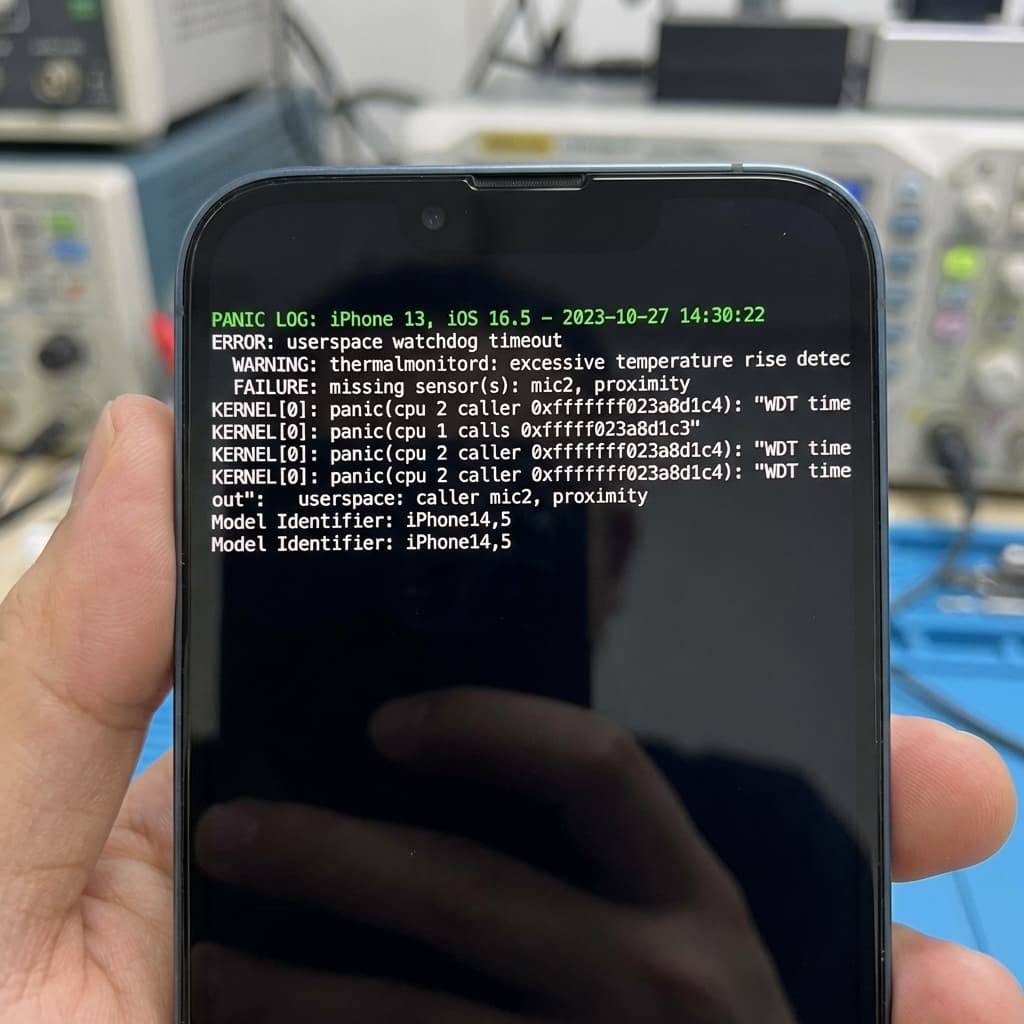

ANALYZING PANIC LOG SIGNATURE...
panic(cpu 0 caller 0xfffffff023fc824c): "userspace watchdog timeout: no successful checkins from thermalmonitord" @userspace_watchdog.c:43
service: backboardd, total successful checkins: 0
service: thermalmonitord, total successful checkins: 0
...
"missing sensor(s): mic2"Found Match: Missing Sensor: MIC2 / PRS0 (Front Flex)
What Usually Fixes It
RECOMMENDED KIT🇺🇸 US Stock

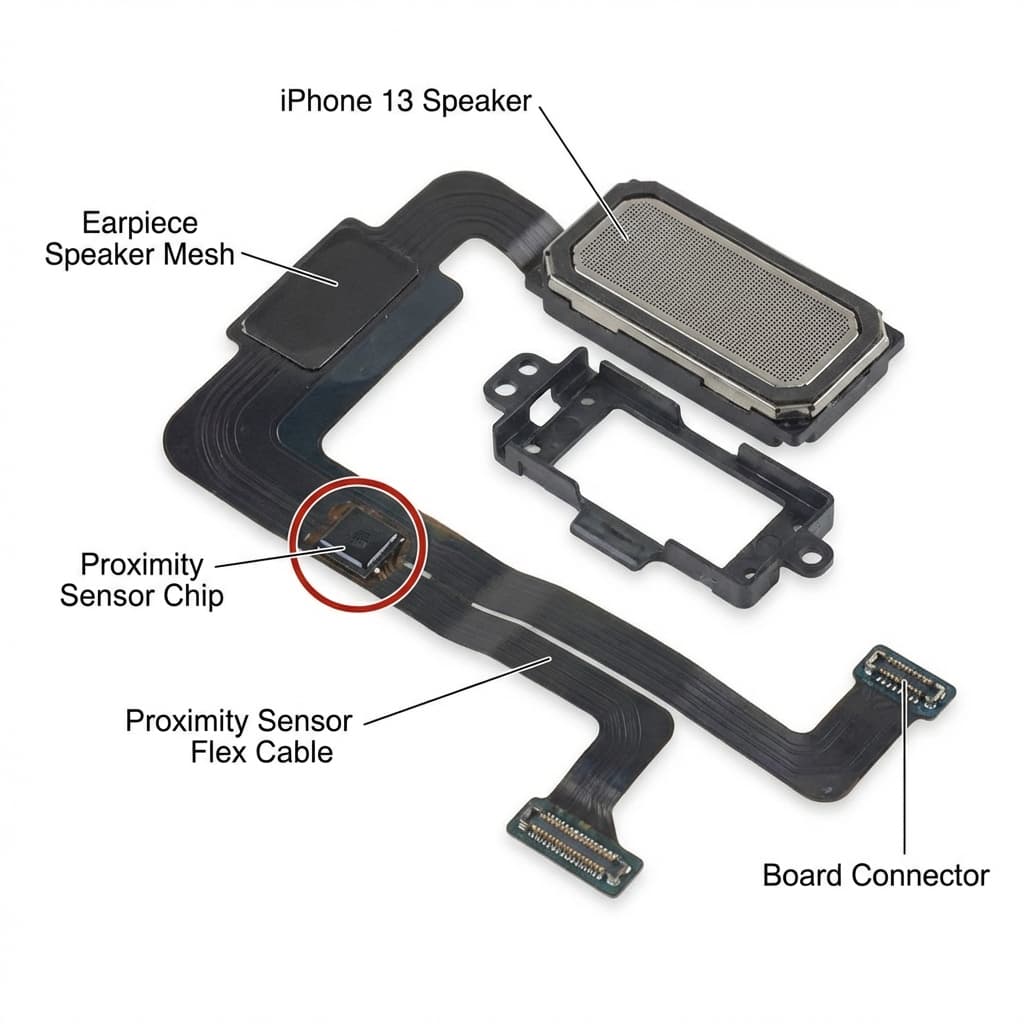

iPhone 13 Earpiece & Sensor Flex Repair Kit (Premium)
✅ Stops the '3-Minute Restart' Loop Immediately
✅ Includes Factory-Grade Waterproof Seal
✅ All Screwdrivers and Sucker Included (Full Tool Set)
✅ Restores Crystal Clear Call Audio
Want a More Precise Diagnosis?
Connect your device to our interactive tool. We'll analyze specific sensors and logic to pinpoint the exact failure point.
START FULL DIAGNOSISOther Possible Causes
WHILE LESS LIKELY, THESE ISSUES COULD ALSO CAUSE SIMILAR SYMPTOMS
Charging Port Flex (mic1 failure)MEDIUM PROBABILITY
Bad Battery (random shutdowns)LOW PROBABILITY
Frequently Asked Questions
Q: Will I lose Face ID if I replace this part?
Yes. This is the critical trade-off. The Face ID sensor is paired to your logic board by Apple. Replacing the flex restores boot stability and fixes the restart loop, but Face ID will be disabled (you must use Passcode). To keep Face ID, you would need microsoldering to transfer the original sensor chip, which is not a DIY procedure.
Q: Why does a broken sensor cause restarts?
The iPhone performs a system check every 3 minutes. If the thermal sensor or microphone (mic2) on this flex is shorted or unresponsive, the system 'panics' thinking the phone might overheat, and forces a restart to protect itself.
Q: Can I just clean the sensor?
Rarely. This issue is usually caused by internal corrosion from liquid ingress or a micro-fracture in the flex cable. Cleaning the outside mesh won't fix the electrical short inside.
Q: Is this kit difficult to install?
It is rated Intermediate. The hardest part is carefully removing the screen without cracking it. Our kit includes the specific adhesive and tools you need to do this safely. The actual part swap is straightforward screw work.
