iPhone 14 Pro / Pro Max Random Restart Diagnosis

SMC Panic 0x80000 Code & Proximity Sensor Flex Failure

Experiencing an iPhone 14 Pro or Pro Max that reboots precisely every 3 minutes? This relentless reboot cycle is incredibly frustrating but highly diagnosable. If the Panic Log displays a 0x80000 error code, it isolates the hardware failure specifically to the earpiece/proximity sensor flex cable assembly. This guide covers how this failure interacts with the new Dynamic Island and how to resolve the SMC PANIC.

QUICK ANSWER

CRITICAL COMPONENT FAILURE

Earpiece/Proximity Sensor Flex Cable Replacement

Confidence: 90% - The 0x80000 code on the iPhone 14 Pro series specifically identifies a loss of communication with the top proximity flex assembly.. Use our diagnosis tool

The iPhone 14 Pro: LiDAR, Dynamic Island, and Sensor Mapping

The iPhone 14 Pro series introduces significant changes to the sensor architecture to accommodate the pill-shaped 'Dynamic Island'. Due to the relocated ambient light sensor (now behind the display panel) and the additional LiDAR sensors, the memory address mapping for the sensor array differs from the standard iPhone 14. Therefore, when the iOS Watchdog Timer fails to receive a signal from the proximity flex cable (typically due to physical stress, liquid damage, or trace breakage), the SMC kernel panic reports code 0x80000 instead of 0x200000. This panic halts the CPU, causing the 180-second reboot cycle.

MATCHED EVIDENCE FROM SYMPTOM CHECK

Phone reboots automatically at a fixed interval of exactly 3 minutes (approx. 180 seconds)Reboots occur in standby mode without any user interactionOccasional touch unresponsiveness near the Dynamic Island areaScreen does not turn off automatically during phone calls (proximity sensor disabled)

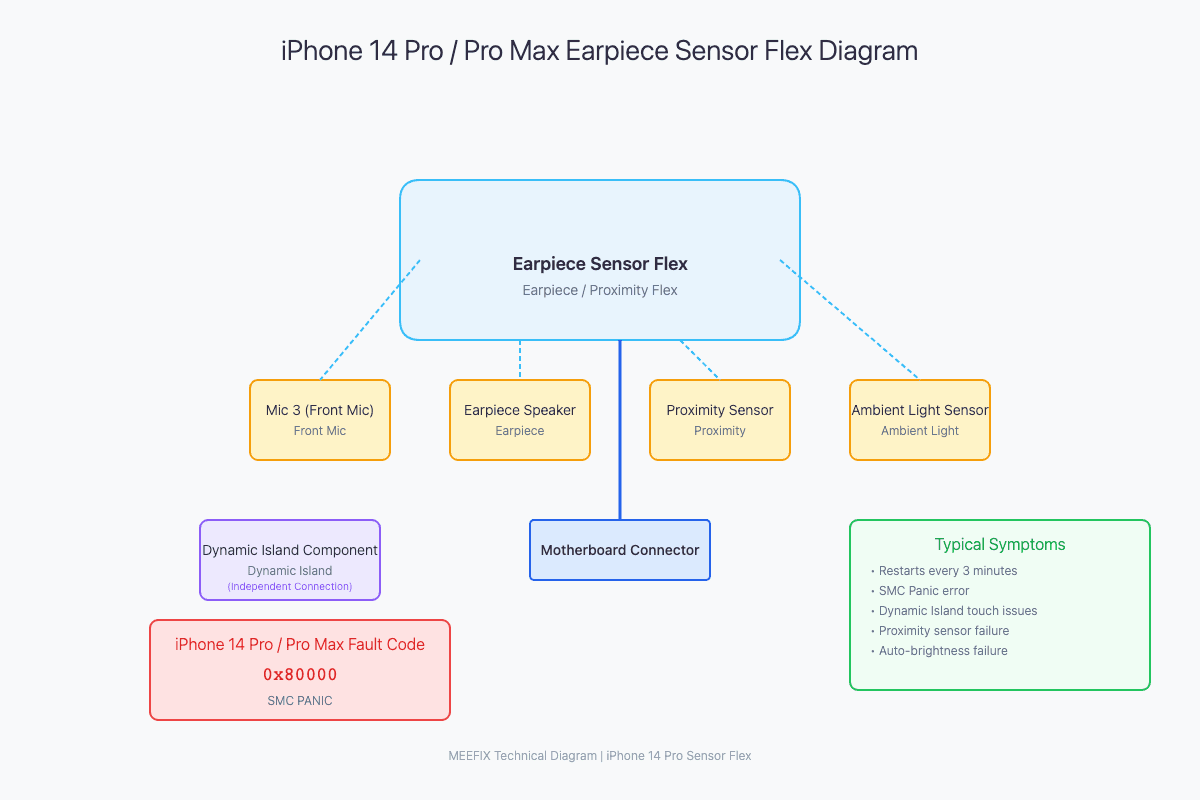

iPhone 14 Pro Motherboard and Dynamic Island Sensor Connection Diagram — Schematic view of the iPhone 14 Pro proximity sensor flex near the Dynamic Island.

Verifying the 0x80000 SMC Panic

Read the Panic Log via Settings > Privacy & Security > Analytics & Improvements > Analytics Data. Find 'panic-full' and look closely at the Sensor Array value.

SMC PANIC - ASSERTION FAILED
Sensor Array: 0x80000

Found Match: Earpiece/Proximity Sensor Flex Cable

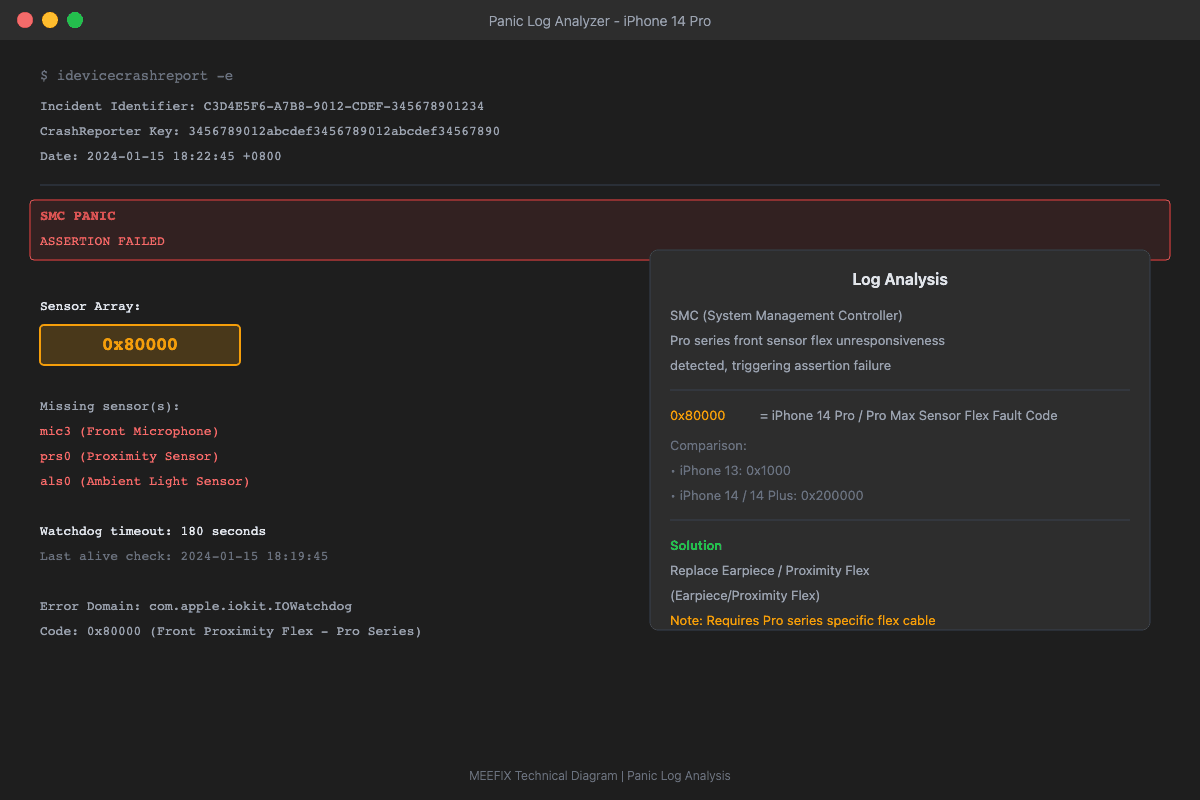

iPhone 14 Pro Panic Log 0x80000 SMC Panic — The diagnostic log pinpointing the 0x80000 failure.

Fixing the iPhone 14 Pro Reboot Issue

Replacing the earpiece and proximity sensor flex assembly fixes the kernel panic and stops the 3-minute reboot cycle. Take extreme care during the teardown, as the flex cables around the Dynamic Island are fragile.

Want a More Precise Diagnosis?

Use our interactive diagnostic tool to narrow down your device's issues. By answering a few specific questions, we'll help pinpoint the exact failure point.

START FULL DIAGNOSIS

Other Possible Causes

WHILE LESS LIKELY, THESE ISSUES COULD ALSO CAUSE SIMILAR SYMPTOMS

Damaged Charging Port Flex - Code 0x400000LOW PROBABILITY

Dynamic Island component connection issueLOW PROBABILITY

Frequently Asked Questions

Q: Is the proximity flex cable on the iPhone 14 Pro the same as the standard version?

No. While the symptoms are similar, the Pro series' proximity flex must coordinate with the Dynamic Island and features different sensor configurations. It is vital to use repair kits explicitly labeled as compatible with the Pro series.

Q: Why is the Pro series code 0x80000 instead of 0x200000?

Apple assigns different sensor array addresses to different logic boards based on available sensors (such as LiDAR). This mapping discrepancy means the exact same physical failure point results in a different hex code on the Pro compared to the standard 14.

Q: Will replacing the flex cable affect the Dynamic Island?

It will not directly impair it. The core components of the Dynamic Island (front-facing camera, Face ID) are distinct from the proximity flex cable. However, the proximity sensor does play a role in certain interactions around it, which is restored after replacement.
